    CNC Mortiser/Tenoner (Side Hole Drilling Machine)

    CNC mortise and tenon machine for performing operations of side drilling, mortise and tenon milling
    • Max. working length2050mm
    • Max. working width500mm
    • Machine weight1000kg
    • Machine dimensions (L×W×H)3400×1500×1750mm

    CNC mortising and tenoning machines combine precision side drilling, mortise cutting, and tenon milling in wood panels and components. Integrating multiple operations into one system, they are ideal for streamlining production in modern furniture manufacturing. These machines ensure strong, clean, and accurate assembly of wood parts by precisely machining connection points for fasteners, dowels, and joint structures.

    Request a Quote
    Specifications
    • Max. working length2050mm
    • Max. working width500mm
    • Max. working height150mm
    • Max. diameter of round tenon100mm
    • Max. width of transverse tenon500mm
    • Max. width of vertical tenon150mm
    • Air pressure0.4-0.9MPa
    • Cutter diameter5-30mm
    • Total power8.0kW
    • Spindle power4-3.5kW
    • Machine weight1000kg
    • Machine dimensions (L×W×H)3400×1500×1750mm
    Applications

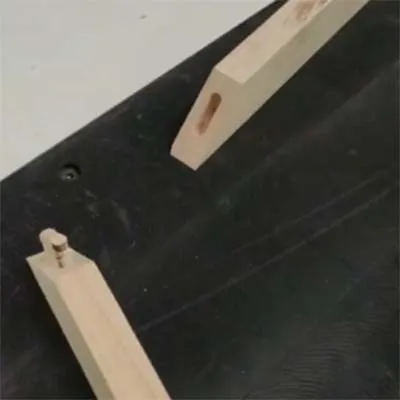

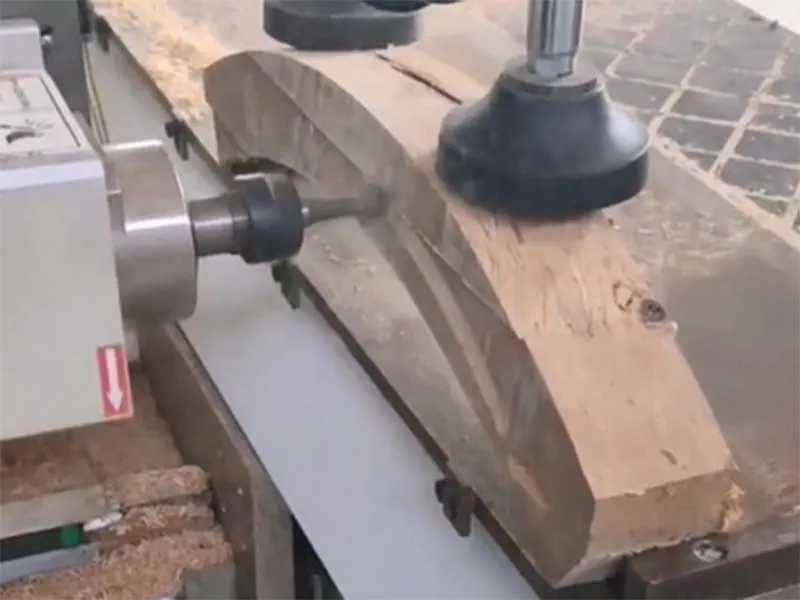

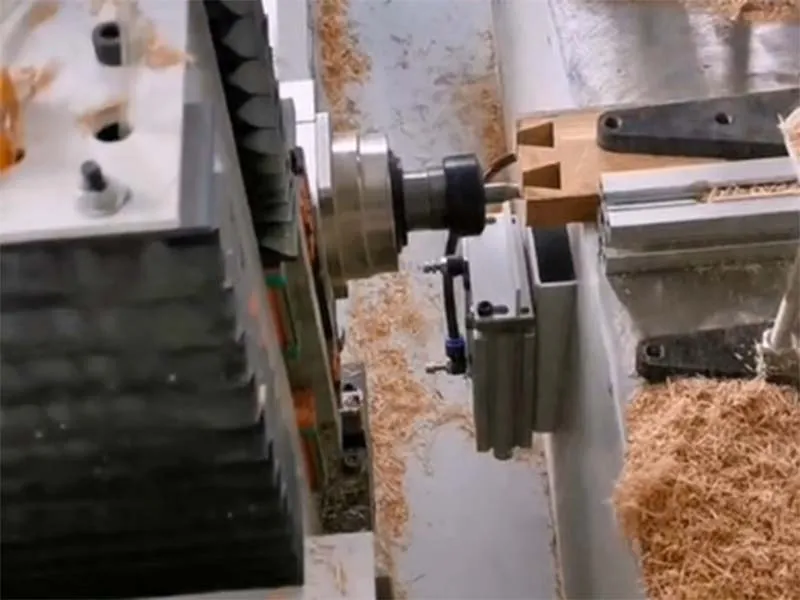

    Used for side drilling, mortise cutting, and tenon slotting on wooden furniture components. All shapes, sizes, and cutting angles can be adjusted or customized according to specific production requirements.

    • CNC Mortiser/Tenoner (Side Hole Drilling Machine)
    • CNC Mortiser/Tenoner (Side Hole Drilling Machine)
    • CNC Mortiser/Tenoner (Side Hole Drilling Machine)
    • CNC Mortiser/Tenoner (Side Hole Drilling Machine)
    Features

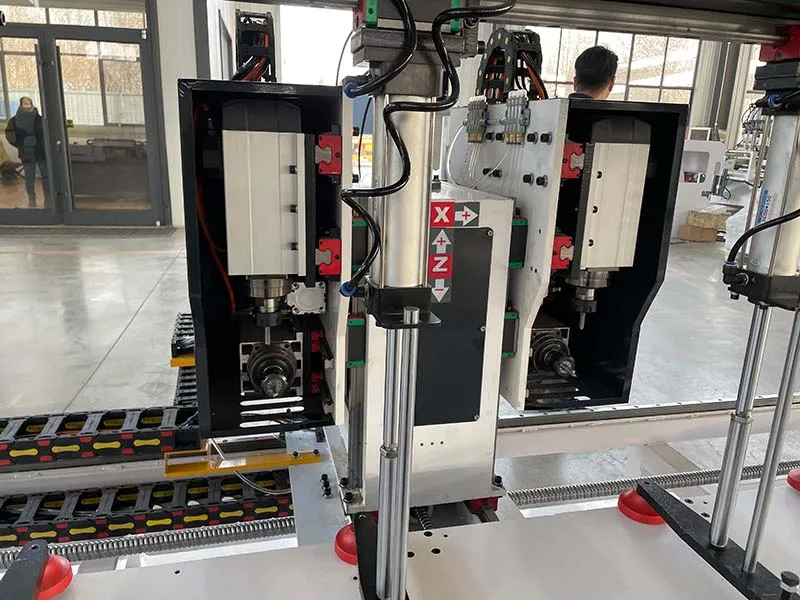

    • Combines drilling, mortising, and tenon cutting in one compact machine, reducing floor space requirements and eliminating transfer time between multiple processing stations.
    • Equipped with an advanced measurement and positioning system to ensure tight tolerances and accurate alignment of holes, mortises, and tenons for improved and high-precision final product quality.

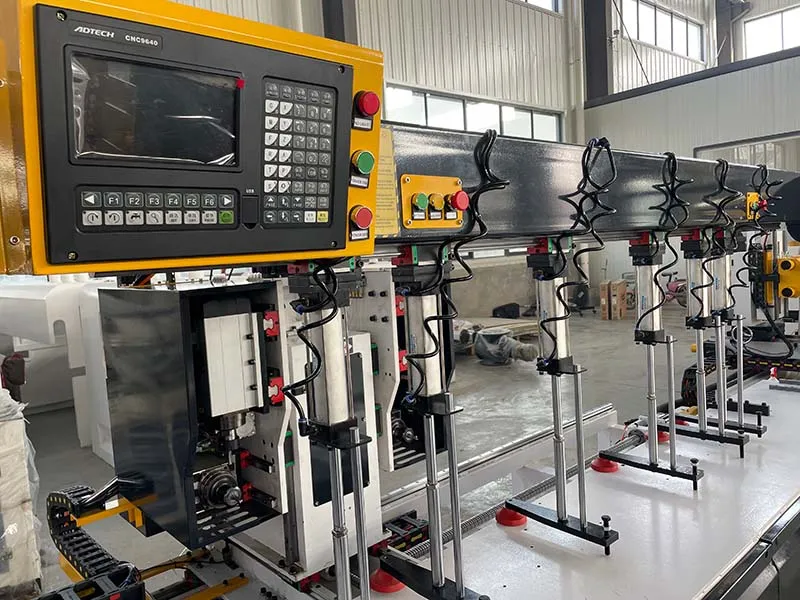

    • Operated via a user-friendly intelligent CNC control interface with programmable parameters, allowing for quick setup, mode switching, and adaptation to a wide range of part shapes and sizes.
    Features
